Testing the boards...

Mar 21, 2019 by Diego

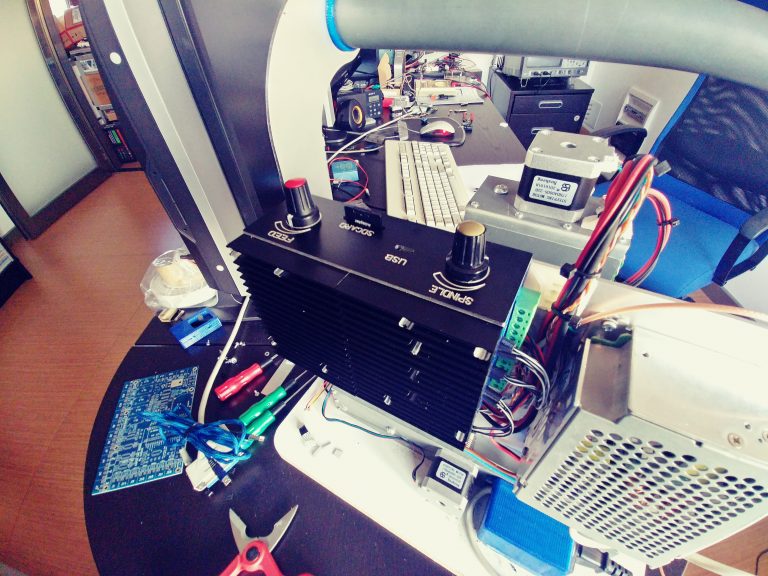

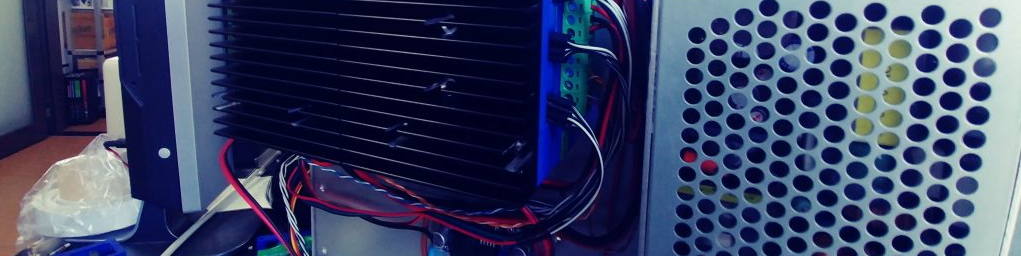

Today we are testing the complete version of the project (motherboard + expansion card + stepper driver) on my toy CNC. As you can see from the photos, the steppers are directly controlled by the drivers mounted on the expansion card. It seems to work properly!

Testing time.

Testing time

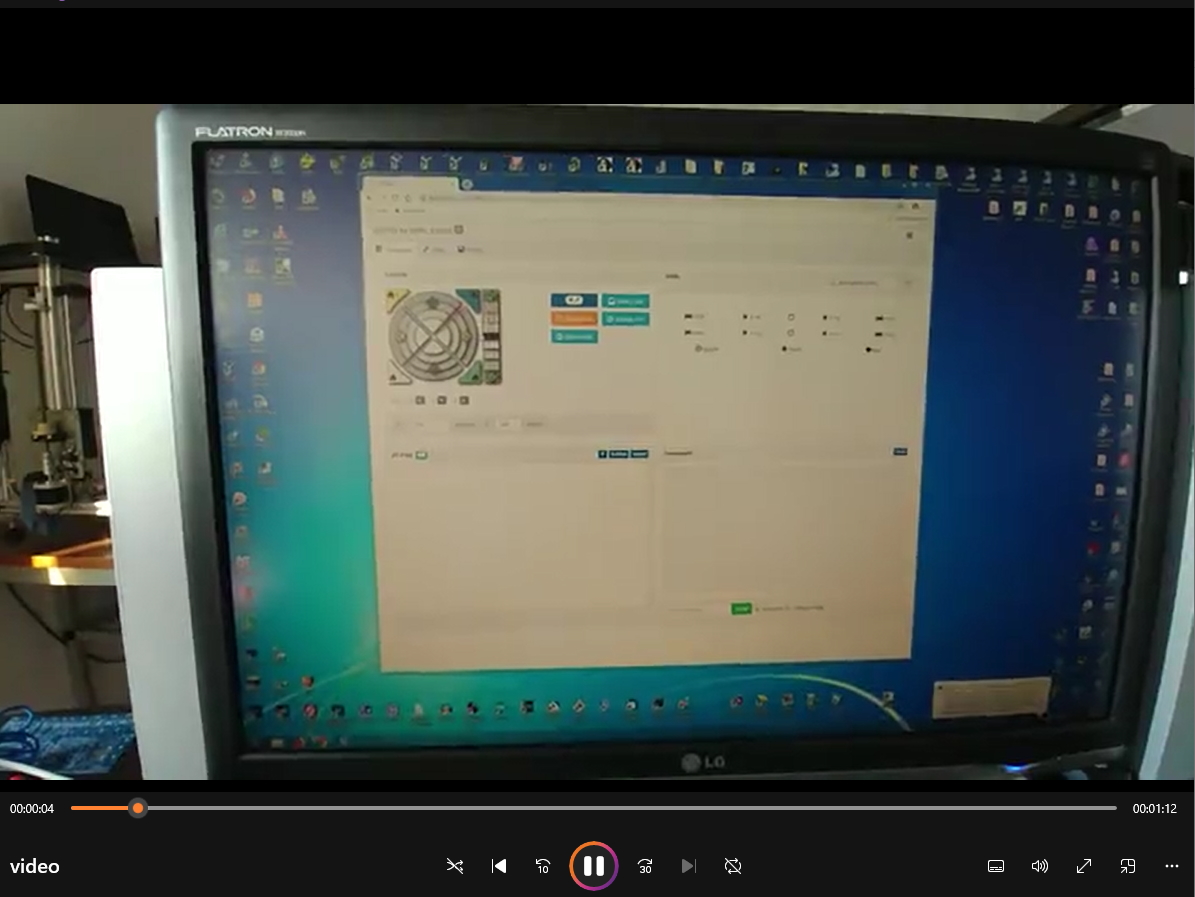

Watch the VIDEO!
