How to meet your every need
"Motherboard only" version
This version consists of the motherboard only. Recommended if you are building your own CNC machine from scratch.

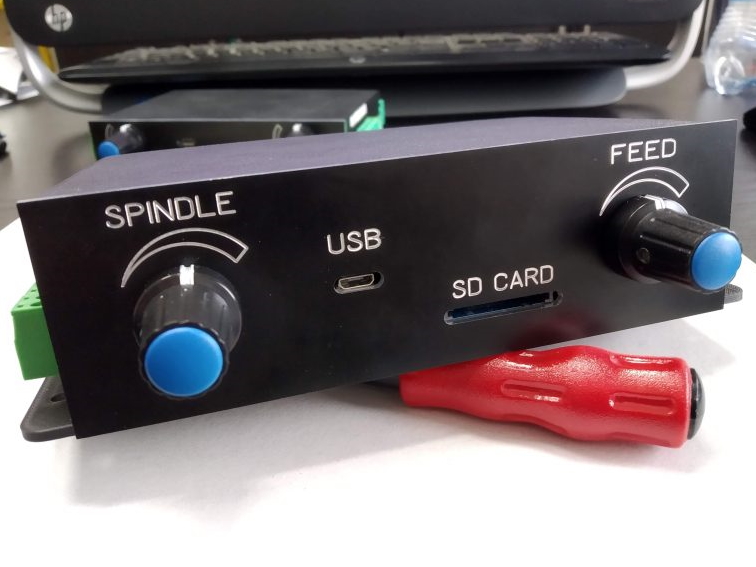

Motherboard only - front

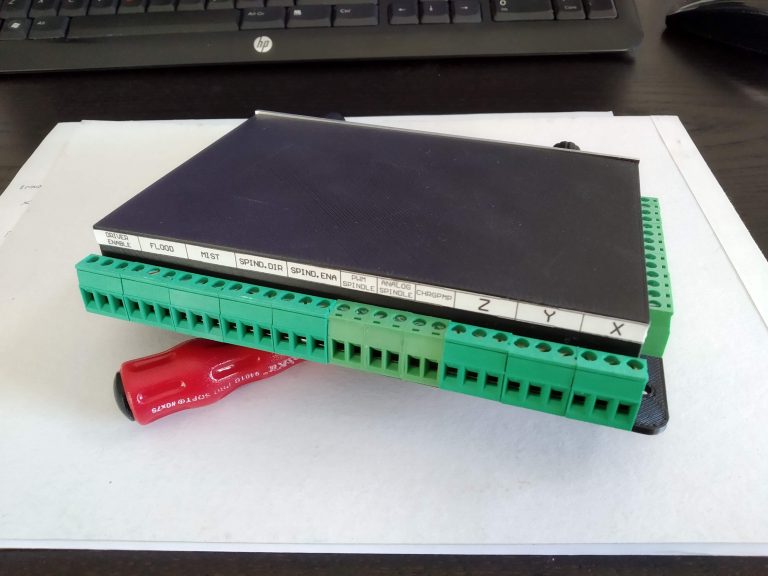

Motherboard only - back
"Motherboard + Expansion Card" version
This version includes the motherboard and the expansion board. The latter is required if you want to use the additional I/O lines and the LPT-style connection. Recommended if you wish to convert an old CNC machine from Mach3-LPT style to ESP32-GRBL style.
Motherboard+expansion - front

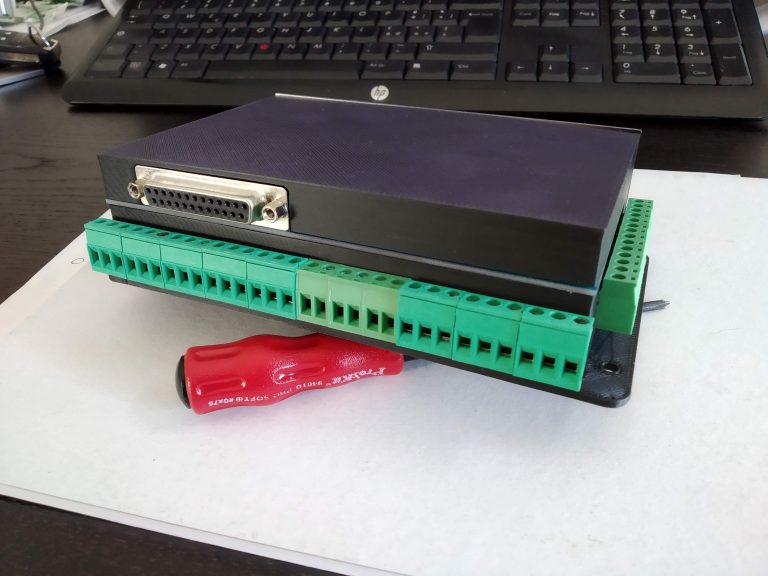

Motherboard+expansion - back
"Embedded stepper drivers" version
In this case, the expansion board also mounts the stepper drivers, which must be duly cooled with a heat sink. Recommended if you want to build a desktop CNC machine.

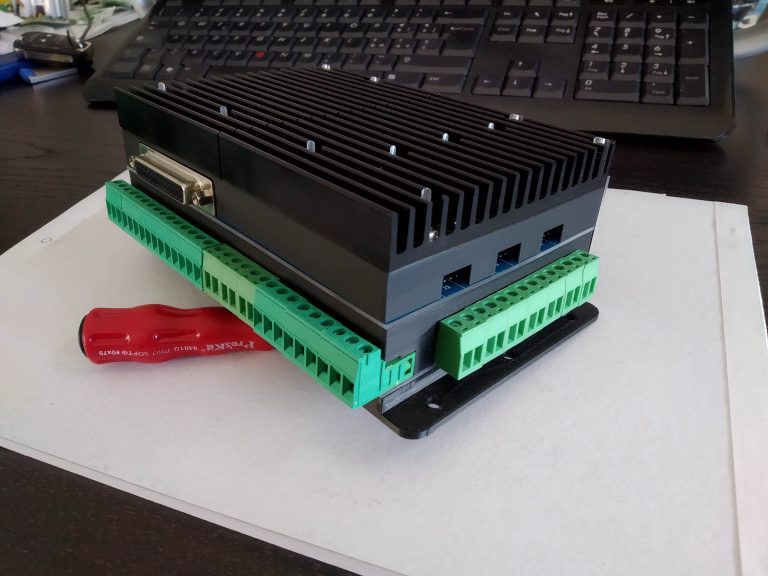

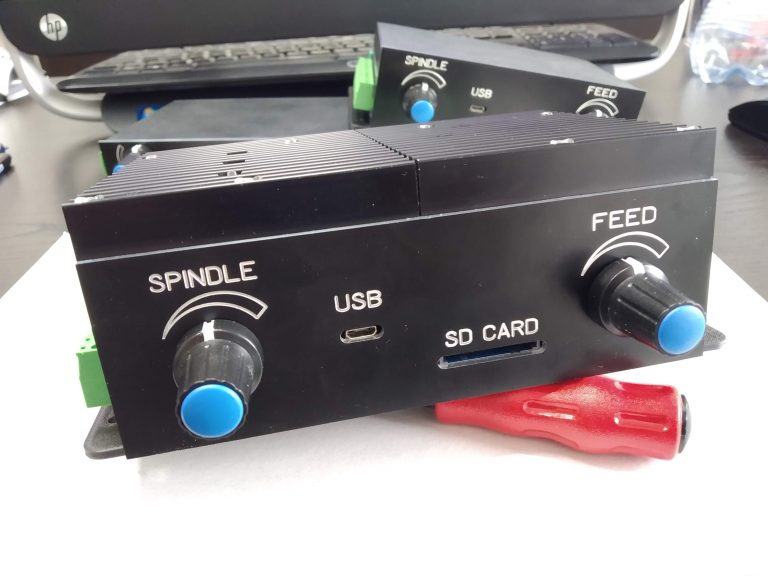

Stepper - front
Stepper - back
