FLEXMod NT033

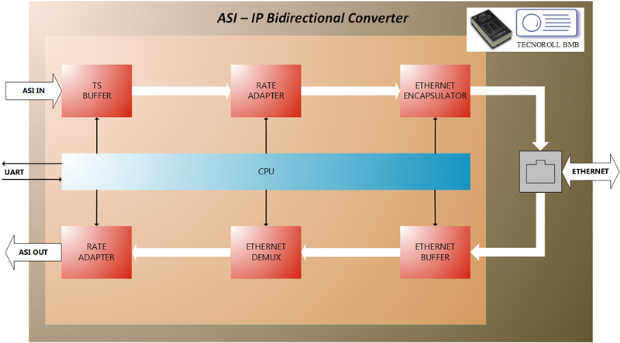

ASI-IP IP-ASI full duplex transport stream converter

Integrated solution to transfer one Transport Stream through an ethernet network in UNICAST UDP mode. Easily configurable through a UART serial port, the module allows to develop a complete and very compact system.

Resoruces

FLEXMod 3 Flyer

Bootloader technical document

ASI-IP IP-ASI getting started

Starter kit

Technical specifications:

ASI inputs.
ASI output.
Network input (full duplex).
Network output.
Network configuration parameters: ip address, subnet mask, default gateway, mac address.
Jitter control: low latency, adjustable buffering.
Receiver mode selection: MFN or SFN.
Arbitrary selection of the output TS rate.

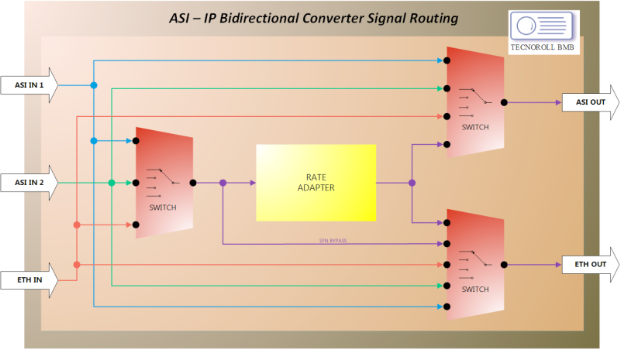

Embedded multiplexer for output TS reconstruction.
Non-volatile memory to save the current system configuration.
Easy configuration through an asynchronous serial port via high-level commands.
No need for reconfiguration on power-up
