FLEXMod 901
Transport Stream converter/remultiplexer

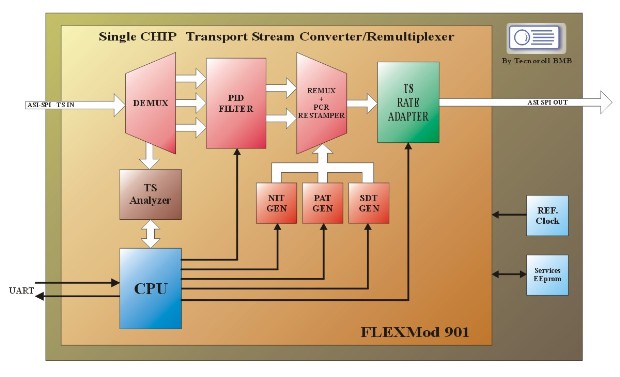

Integrated solution for the conversion of DVB-T/C/S services. The system is composed by a demultiplexer/multiplexer and an output TS rate adapter. Any incoming TS (cable/satellite/terrestrial) can be converted into any outgoing TS (cable/satellite/terrestrial). Output services can be easily selected, remultiplexed and set to high or low priority. TS output rate can be set to any value. Easily configurable through a UART serial port, allows the development of a complete and very compact remultiplexing system.
Technical specifications
- ASI and SPI TS inputs.
- ASI and SPI TS outputs.
- Automatic recognition, analysis and demultiplexing of the incoming services.
- Visualization of the Input/Output TS bandwidth.
- Arbitrary selection of the Output TS rate.
- Selection and removal of unwanted services.
- QoS (Quality of Service) function for the selected services.
- LCN (Logical Channel Number) insertion for the selected services.
- NIT (Network Information Table) insertion for a correct Bouquet generation.
- Supports Service-ID remapping.
- Supports Transport-Stream-ID remapping.
- Supports Original-Network-ID remapping.
- Supports Control-Access flags & descriptors removal in the de-encrypted services.
- Automatic service monitoring and PID tracking for the desired services.
- Embedded DVB-Tables regeneration.
- Embedded Remultiplexer for TS reconstruction.
- PCR restamper for a correct timing reconstruction.
- Support to SFN-Link (signed packet removal for compatibility with DVB-T SFN distribution networks).
- Non-volatile memory for system configuration.
- Easy configuration through asynchronous serial port with high-level commands.
- No need for additional programming on power-up.
General specifications:
- Data input: ASI.
- Power Supply: 3V3, 1V8, 1V2
- Power Consuption: ‹3W.
- Operating Temperature: 0-70 ºC.
- Storage Temperature Range: -20 +85 ºC.
- Dimensions: 29 x 49,5 x 9,5 mm.
- Weight: 20 gr
