TR391AV
MPEG2 encoder
Integrated solution for the compression and multiplexing of DVB services.
The system is composed by 4 MPEG2 encoders + 1 multiplexer/modulator. Easily configurable through a UART serial port, allows the development of a complete and very compact encoding system.
The system is composed by 4 MPEG2 encoders + 1 multiplexer/modulator. Easily configurable through a UART serial port, allows the development of a complete and very compact encoding system.
Encoder specifications
- Video encoding: ISO/IEC 13818-2 (MPEG-2) MP@ML and ISO/IEC 11172-2 (MPEG-1).
- Encoder bitrate up 15Mbps.
- Video resolution up to 720x576.
- Audio encoding: ISO/IEC 11172-3 (MPEG-1) layer 1/2.
- Audio selectable in Single/Dual/Joint Stereo/Stereo mode

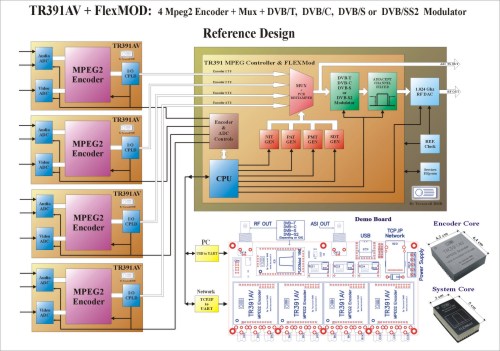

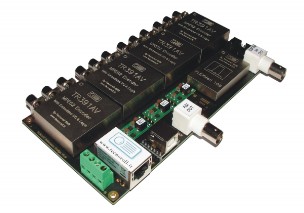

Reference design specifications:
- 1 Multiplexer/Modulator.
- 4 MPEG2 encoders.
- 4 AV RCA inputs.
- 1 USB port for the system management.
- 1 Ethernet port for LAN management.
- 1 ASI output for the generated TS.
- 1 RF output for the modulated signal.
- Non-volatile memory for system configuration.
- Easy configuration through asynchronous serial port with high level commands.
- No need for additional programming on power-up.
