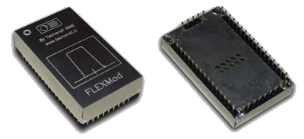

FLEXMod 711
Convert an MFN (Multi Frequency) TS into an SFN TS ready to be transmitted over a Synchronous Network

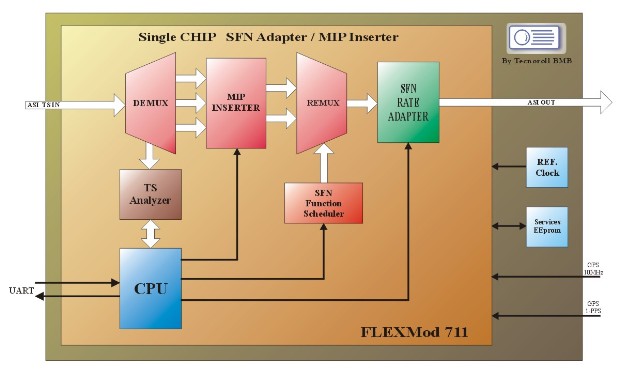

Integrated solution to adapt a generic Transport Stream to a stream ready to be sent to a DVB-T modulator for synchronous networks compliant with the ETSI TS 101 191 standard.
Using the FLEXMod 711 the Transport stream rate will be synchronized to a GPS and to an optional external frequency reference.
The FLEXMod will also add all the necessary informations for trasmission synchronization (MIP) and the so called "MIP functions" to configure specific modulators in the network.
Easily configurable through a UART serial port, allows the development of a complete and very compact remultiplexing system.
Using the FLEXMod 711 the Transport stream rate will be synchronized to a GPS and to an optional external frequency reference.
The FLEXMod will also add all the necessary informations for trasmission synchronization (MIP) and the so called "MIP functions" to configure specific modulators in the network.
Easily configurable through a UART serial port, allows the development of a complete and very compact remultiplexing system.
Technical specifications
- ASI TS inputs.
- ASI TS outputs.
- Visualization of the Input/Output TS bandwidth.
- Arbitrary selection of the Output TS rate.
- Embedded Remultiplexer for TS reconstruction.
- PCR restamper for a correct timing reconstruction.
- Non-volatile memory for system configuration.
- Easy configuration through asynchronous serial port with high-level commands.
- No need for additional programming on power-up.
General specifications:
- Data input: ASI.
- Power Supply:
- Data input: ASI.
- Power Supply: 3V3, 1V8, 1V2
- Power Consuption: ‹3W.
- Operating Temperature: 0-70 ºC.
- Storage Temperature Range: -20 +85 ºC.
- Dimensions: 29 x 49,5 x 9,5 mm.
- Weight: 20 gr
