FLEXMod 311
DVB-C Modulator with embedded Remultiplexer

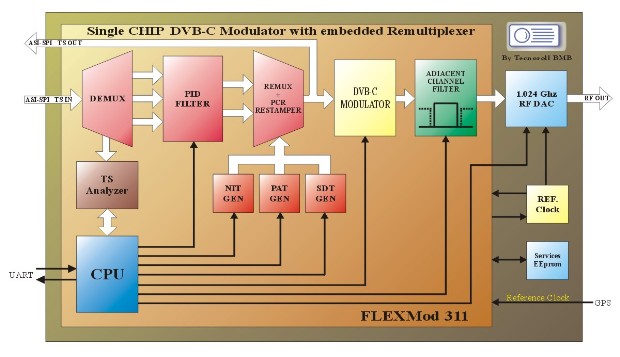

Integrated solution for the distribution/regeneration of DVB-C services. The system is composed by a demultiplexer/multiplexer and a DVB-C modulator with RF output. Easily configurable through a UART serial port, allows the development of a complete and very compact modulation system.
Remultiplexer specifications
- ASI and SPI TS inputs.
- ASI and SPI TS outputs.
- Automatic recognition, analysis and demultiplexing of the incoming services.
- Visualization of the Input/Output TS bandwidth.
- Selection and removal of unwanted services.
- QoS (Quality of Service) function for the selected services.
- LCN (Logical Channel Number) insertion for the selected services.
- NIT (Network Information Table) insertion for a correct Bouquet generation.
- Automatic service monitoring and PID tracking for the desired services.
- Supports Service-ID remapping.
- Embedded DVB-Tables regeneration.
- Embedded remultiplexer for TS reconstruction.
- PCR restamper for a correct timing reconstruction.
- Non-volatile memory for system configuration.
- Easy configuration through asynchronous serial port with high-level commands.
- No need for additional programming on power-up.
Modulator specifications:
- QAM Modulator ITU-T J.83 Annex A/C, DVB-C (ETS 300 429)
- Selectable RF power output up to -7dBm
- Enhanced digital filtering for improved adjacent channel packing
- The internal oscillator can be locked to an external arbitrary clock source or to a GPS pps reference clock
- Support to SFN-Link (packet signature for compatibility with DVB-T SFN distribution networks)
- Frequency range 0 - 500 MHz RF out through internal 1 GHz DAC.
- Modulation type: ITU-T J.83 Annex A/C, DVB-C (ETS 300 429)
- Symbol rate: 0-7000 Ms/s
- Constellation: 16, 32, 64, 128 e 256 QAM
- Spectrum mode: Normal/Inverted
- PCR Restamper: Selectable ON/OFF
- Output Frequency: 0-500 MHz 1 Hz Step (Internal 1Ghz DAC)
- Output level: -7 dBm typical
- MER: ›43 dB typical
