FLEXMod 301
DVB-S/S2/T/T2 to DVB-C Transmodulator with embedded Remultiplexer

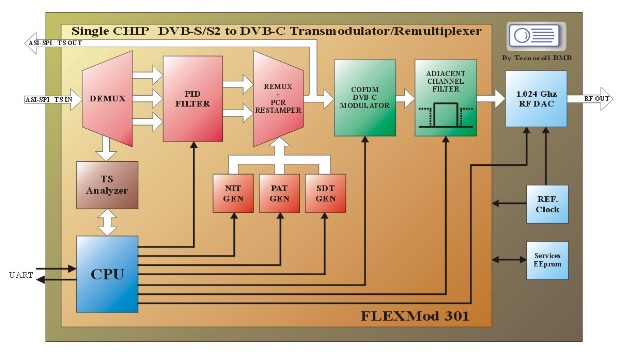

Integrated solution for the redistribution/regeneration of DVB-S/S2/T/T2 services into DVB-C. The system is composed by a demultiplexer/multiplexer and a COFDM modulator with RF output. Easily configurable through a UART serial port, allows the development of a complete and very compact A/V distribution system.
Remultiplexer specifications
- ASI and SPI TS inputs.
- ASI and SPI TS outputs.
- Automatic recognition, analysis and demultiplexing of the incoming services.
- Visualization of the Input/Output TS bandwidth.
- Selection and removal of unwanted services.
- QoS (Quality of Service) function for the selected services.
- LCN (Logical Channel Number) insertion for the selected services.
- NIT (Network Information Table) insertion for a correct Bouquet generation.
- Automatic service monitoring and PID tracking for the desired services.
- Supports Service-ID remapping.
- REmbedded DVB-Tables regeneration.
- Embedded remultiplexer for TS reconstruction.
- PCR restamper for a correct timing reconstruction.
- Non-volatile memory for system configuration.
- Easy configuration through asynchronous serial port with high-level commands.
- No need for additional programming on power-up.
Modulator specifications:
- QAM Modulator ITU-T J.83 Annex A/C, DVB-C (ETS 300 429).
- Selectable RF power output up to -7dBm.

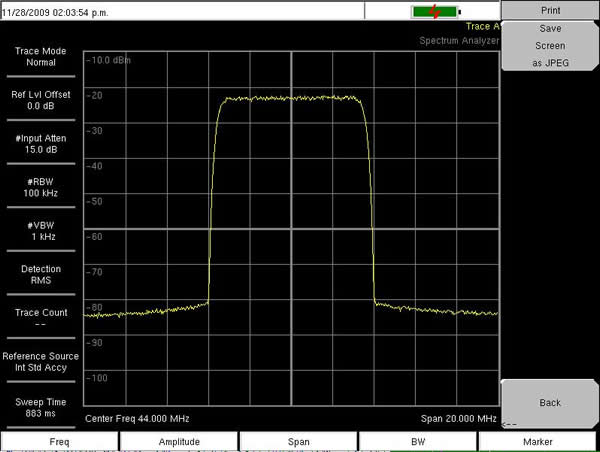

- Enhanced digital filtering for improved adjacent channel packing.
- Frequency range 0 - 500 MHz RF out through internal 1 GHz DAC.
- Image signal 500 -850 MHz still usable for many applications
- Modulation type: ITU-T J.83 Annex A/C, DVB-C (ETS 300 429).
- Symbol rate: 0-7000 Ms/s .
- Constellation:16, 32, 64, 128 e 256 QAM.
- Spectrum mode: Normal/Inverted.
- PCR Restamper: Selectable ON/OFF.
- Output Frequency: 0-500 MHz 1 Hz Step (Internal 1Ghz DAC).
- Output Level: -7 dBm typical.
- MER: ›43 dB typical.
