FLEXMod 211

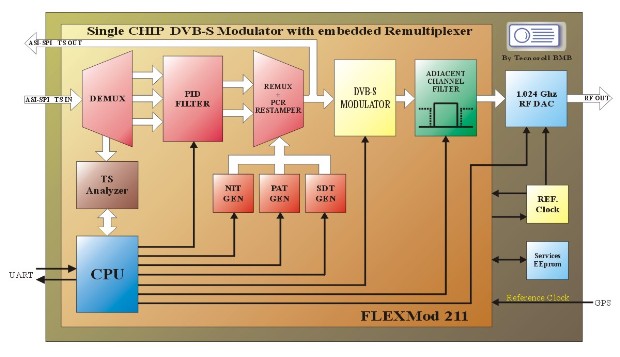

DVB-S Modulator with embedded Remultiplexer

Integrated solution for the distribution/regeneration of DVB-S services. The system is composed by a demultiplexer/multiplexer and a DVB-S modulator with RF output. Easily configurable through a UART serial port, allows the development of a complete and very compact modulation system.

Resoruces

FLEXMod 211 flyer

Module technical document

Bootloader technical document

Starter kit

Remultiplexer specifications

ASI and SPI TS inputs.
ASI and SPI TS outputs.
Automatic recognition, analysis and demultiplexing of the incoming services.
Visualization of the Input/Output TS bandwidth.
Selection and removal of unwanted services.
QoS (Quality of Service) function for the selected services.
LCN (Logical Channel Number) insertion for the selected services.
NIT (Network Information Table) insertion for a correct Bouquet generation.
Automatic service monitoring and PID tracking for the desired services.
Supports Service-ID remapping.
Embedded DVB-Tables regeneration.
Embedded remultiplexer for TS reconstruction.
PCR restamper for a correct timing reconstruction.
Non-volatile memory for system configuration.
Easy configuration through asynchronous serial port with high-level commands.
No need for additional programming on power-up.

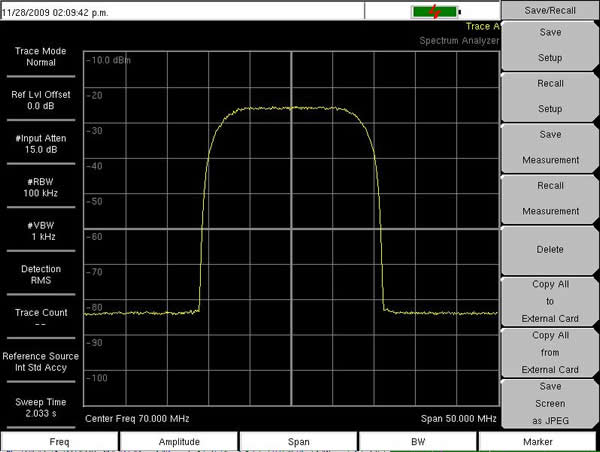

Modulator specifications:

QPSK Modulator, DVB-S (ETSI ETS 300 421)
Selectable RF power output up to -7dBm
Enhanced digital filtering for improved adjacent channel packing
The internal oscillator can be locked to an external arbitrary clock source or to a GPS pps reference clock
Support to SFN-Link (packet signature for compatibility with DVB-T SFN distribution networks)
Frequency range 0 - 500 MHz RF out through internal 1 GHz DAC.

Modulation type: QPSK DVB-S (ETSI ETS 300 421).
Symbol rate: 1 - 32 Ms/s.
Constellation: QPSK.
FEC: 1/2, 2/3, 3/4, 5/6, 7/8.
Spectrum mode: Normal/Inverted.
PCR Restamper: Selectable ON/OFF.
SFN Compatibility: Selectable ON/OFF (packet signature for compatibility with DVB-T SFN distribution networks).
Output Frequency: 0-500 MHz 1 Hz Step (Internal 1Ghz DAC).
