FLEXMod 111

DVB-T Modulator with embedded Remultiplexer

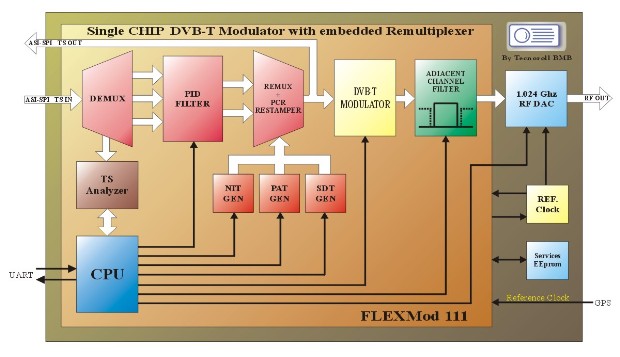

Integrated solution for the distribution/regeneration of DVB-T services. The system is composed by a demultiplexer/multiplexer and a COFDM modulator with RF output. Easily configurable through a UART serial port, allows the development of a complete and very compact modulation system.

Resoruces

FLEXMod 111 flyer

Module technical document

Bootloader technical document

Measures and analisys of the RF output signal

Starter kit

Remultiplexer specifications

ASI and SPI TS inputs.
ASI and SPI TS outputs.
Automatic recognition, analysis and demultiplexing of the incoming services.
Visualization of the Input/Output TS bandwidth.
Selection and removal of unwanted services.
QoS (Quality of Service) function for the selected services.
LCN (Logical Channel Number) insertion for the selected services.
NIT (Network Information Table) insertion for a correct Bouquet generation.
Automatic service monitoring and PID tracking for the desired services.
Supports Service-ID remapping.
Embedded DVB-Tables regeneration.
Embedded remultiplexer for TS reconstruction.
PCR restamper for a correct timing reconstruction.
Non-volatile memory for system configuration.
Easy configuration through asynchronous serial port with high-level commands.
No need for additional programming on power-up.

Modulator specifications:

COFDM Modulator: DVB-T/H ETSI EN 300 744 V1.5.1.
Selectable RF power output up to -7dBm.
Digital reprogrammable filters (Precorrector).
Support of Hierarchical modulation.
Programmable Cell-ID and other H-modes.
The internal oscillator can be locked to an external arbitrary clock source or to a GPS pps reference clock.
Support to SFN-Link (packet signature for compatibility with DVB-T SFN distribution networks).
Frequency range 0 - 300 MHz RF out through internal 1 GHz DAC.

Modulation type: COFDM DVB-T (ETSI EN 300 744).
Channel Bandwidth: 6-7-8 MHz.
Carriers: 2K-4K-8K.
Hierarchy: Alpha 0, 1, 2, 4.
Constellation: QPSK, 16QAM, 64QAM.
FEC: 1/2, 2/3, 3/4, 5/6, 7/8.
Guard Interval: 1/4, 1/8, 1/16, 1/32.
Spectrum mode: Normal/Inverted.
PCR Restamper: Selectable ON/OFF.
SFN Compatibility:Selectable ON/OFF (packet signature for compatibility with DVB-T SFN distribution networks).
Output Frequency: 0-500 MHz 1 Hz Step (Internal 1Ghz DAC).
Output Level: -7 dBm typical.
MER: ›49 dB typical.
