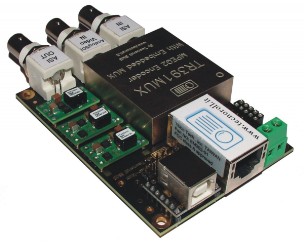

TR392MUX
MPEG2 encoder with embedded multiplexer for radio broadcast applications

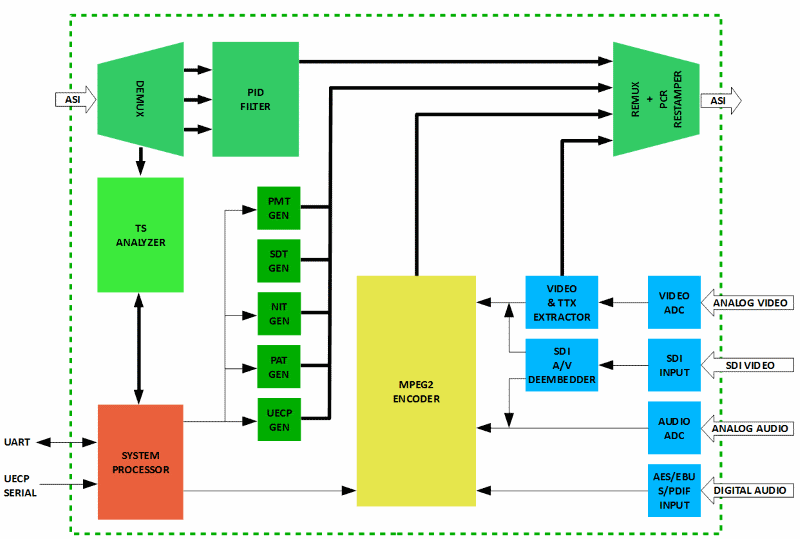

Advanced solution for the compression and multiplexing of DVB and audio services. The system is composed by a demultiplexer/multiplexer and an MPEG2 encoder. Easily configurable through a UART serial port, allows the development of a complete and very compact encoding system.
Remultiplexer specifications

  • ASI TS input up to 216 Mbit/s.
  • ASI TS output up to 216 Mbit/s.
  • Automatic recognition, analysis and demultiplexing of the incoming services.
  • Visualization of the input/output TS bandwidth.
  • Selection and removal of unwanted services.
  • Embedded DVB tables regeneration.
  • Non-volatile memory for the system configuration.
  • Easy configuration through asynchronous serial port with high level commands.
  • No need for additional programming on power-up.

Encoder specifications:

  • SDI video input with embedded audio.
  • Analog video input.
  • Analog audio input.
  • S/PDIF - AES/EBU input.
  • UECP insertion.
  • ideo encoding: ISO/IEC 13818-2 (MPEG-2) MP@ML ed ISO/IEC 11172-2 (MPEG-1).
  • Encoder bitrate up a 15Mbps.
  • Video resolution up to a 720x576.
  • Audio encoding: ISO/IEC 11172-3 (MPEG-1) layer 1/2.
  • Audio selectable in Single/Dual/Joint Stereo/Stereo mode
