TR391MUX
MPEG2 encoder with embedded multiplexer

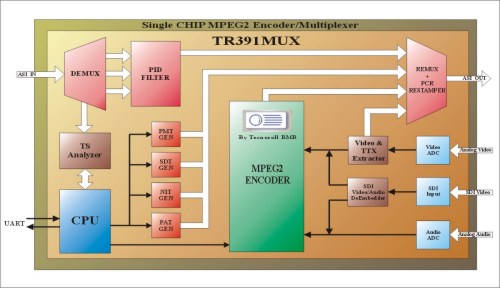

Integrated solution for the compression and multiplexing of DVB services. The system is composed by a demultiplexer/multiplexer and an MPEG2 encoder. Easily configurable through a UART serial port, allows the development of a complete and very compact encoding system.
Remultiplexer specifications
- ASI TS input up to 216 Mbit/s.
- ASI TS output up to 216 Mbit/s.
- Automatic recognition, analysis and demultiplexing of the incoming services.
- Visualization of the input/output TS bandwidth.
- Selection and removal of unwanted services.
- Embedded DVB tables regeneration.
- Non-volatile memory for the system configuration.
- Easy configuration through asynchronous serial port with high level commands.
- No need for additional programming on power-up.
Encoder specifications:
- SDI video input with embedded audio.
- Analog video input.
- Analog audio input.
- ideo encoding: ISO/IEC 13818-2 (MPEG-2) MP@ML ed ISO/IEC 11172-2 (MPEG-1).
- Encoder bitrate up a 15Mbps.
- Video resolution up to a 720x576.
- Audio encoding: ISO/IEC 11172-3 (MPEG-1) layer 1/2.
- Audio selectable in Single/Dual/Joint Stereo/Stereo mode
