FLEXMod MX011
ASI matrix with embedded multiplexer for broadcast applications
Integrated solution for the routing and the multiplexing/remultiplexing of up to 6 ASI inputs. Easily configurable through a UART serial port, the module allows to develop a complete and very compact system
Technical specifications

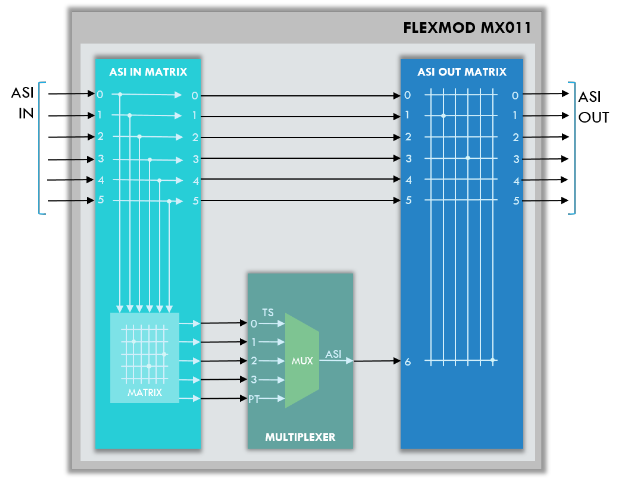

- Receives up to 6 input ASI signals.
- Input routing matrix: it allows to select up to 4 ASI signals for the remultiplexing. One further ASI input can be muxed without the possibility of remultiplexing (passthru).
- Output routing matrix:: it allows to select up to 6 ASI signals and configure on which output route them.
General specifications:
- Data input: ASI.
- Power Supply: 3V3, 1V8, 1V2
- Power Consuption: ‹3W.
- Operating Temperature: 0-70 ºC.
- Storage Temperature Range: -20 +85 ºC.
- Dimensions: 29 x 49,5 x 9,5 mm.
- Weight: 20 gr
