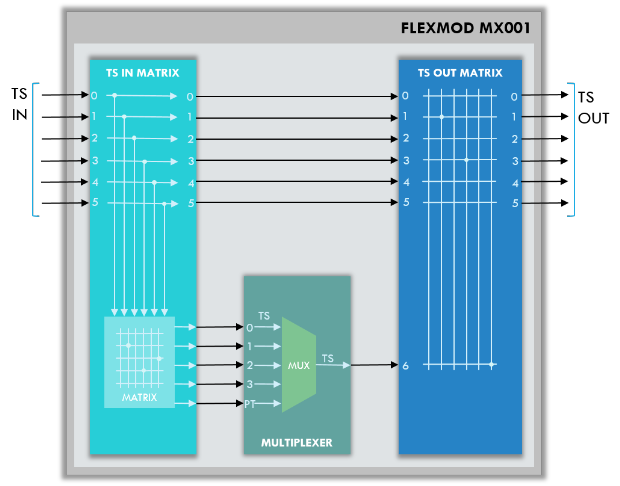

FLEXMod MX001
TS matrix with embedded multiplexer for head-end applications
Integrated solution for the routing and the multiplexing/remultiplexing of up to 6 TS inputs. Easily configurable through a UART serial port, the module allows to develop a complete and very compact system
Technical specifications

  • Receives up to 6 input TS.

  • Input routing matrix: it allows to select up to 4 TS signals for the remultiplexing. One further TS input can be muxed without the possibility of remultiplexing (passthru).

  • Output routing matrix:: it allows to select up to 6 TS signals and configure on which output route them.
