FLEXMod 811
EPG inserter And Aspect ratio corrector (16:9 - 4:3)

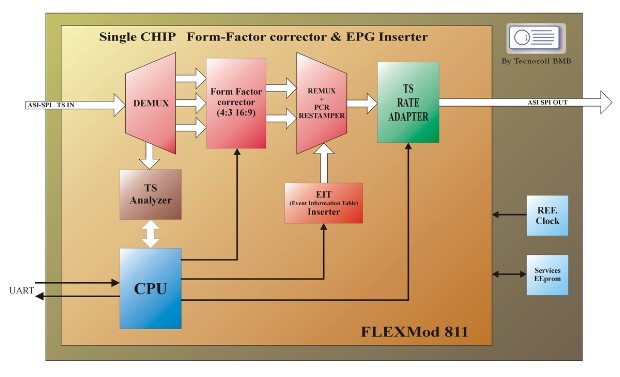

Integrated solution for EPG and Date/Time information insertion and Aspect ratio (4:3, 16:9) correction.
Using the FLEXMod 811 it is possible to add Date/Time, Time offset and DST informations in the Transport Stream. It is also possible to add the Event Information Table (EIT) for the "current" and "following" event for the services present in the Transport Stream. The FLEXMod 811 can also correct the Aspect Ratio descriptor for MPEG2 SD services.
Il dispositivo permette inoltre di modificare il rapporto aspetto immagine dei servizi MPEG2 SD.
Easily configurable through a UART serial port, allows the development of a complete and very compact remultiplexing system.
Using the FLEXMod 811 it is possible to add Date/Time, Time offset and DST informations in the Transport Stream. It is also possible to add the Event Information Table (EIT) for the "current" and "following" event for the services present in the Transport Stream. The FLEXMod 811 can also correct the Aspect Ratio descriptor for MPEG2 SD services.
Il dispositivo permette inoltre di modificare il rapporto aspetto immagine dei servizi MPEG2 SD.
Easily configurable through a UART serial port, allows the development of a complete and very compact remultiplexing system.
Technical specifications
- ASI TS inputs.
- ASI TS outputs.
- Visualization of the Input/Output TS bandwidth.
- Arbitrary selection of the Output TS rate.
- Embedded Remultiplexer for TS reconstruction.
- PCR restamper for a correct timing reconstruction.
- Non-volatile memory for system configuration.
- Easy configuration through asynchronous serial port with high-level commands.
- No need for additional programming on power-up.
General specifications:
- Data input: ASI.
- Power Supply: 3V3, 1V8, 1V2
- Power Consuption: ‹3W.
- Operating Temperature: 0-70 ºC.
- Storage Temperature Range: -20 +85 ºC.
- Dimensions: 29 x 49,5 x 9,5 mm.
- Weight: 20 gr
